Surface Topography Technology
The Basics
3D Surface & Thickness Profiler
Sensing Technology: Chromatic Confocal Single Point and Line Scan
Measurements: Distance and Thickness
How does it work?
![SurfaceProfilingDiagram2019.jpeg](https://static.wixstatic.com/media/874f31_3dcce66ef72a4383bdc703420577d75e~mv2_d_4000_2929_s_4_2.jpeg/v1/fill/w_829,h_582,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/SurfaceProfilingDiagram2019.jpeg)
-

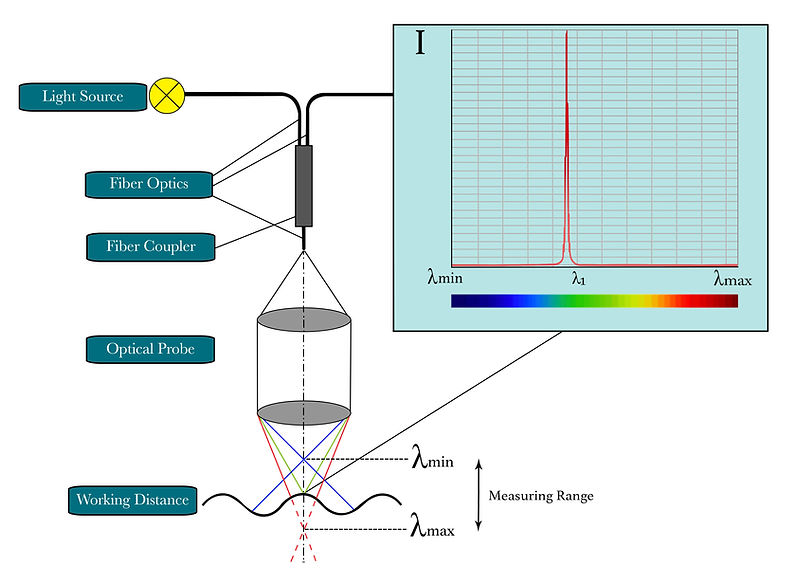

A white light LED is used to illuminate the source
-
The light travels via optical fiber to the chromatic optical probe
-
The chromatic probe focuses light at different colors to different working distances from the probe
-
The back reflected/scattered light is passed back through the optical fiber to a spectrometer which diffracts the light into a spectrum
-
The intensity peak in the spectrum corresponds to a precise distance from the chromatic probe
-
Each measurement is collected at a 4kHz sample rate
-
Probe can be either single point or line scan (192 point)
-
For thickness measurement, the spectrum shows two intensity peaks corresponding to the top and bottom surface of the transparent sample
