Aspheric Tilt Measurement Module™

Based upon the industry-renowned Lens Alignment Station (LAS), the new Aspheric Tilt Measurement Module (ATM) for LAS offers fast, precise, robust and user-programmable automatic tilt measurement for the precision alignment of aspheric surfaces during multi-lens assembly.

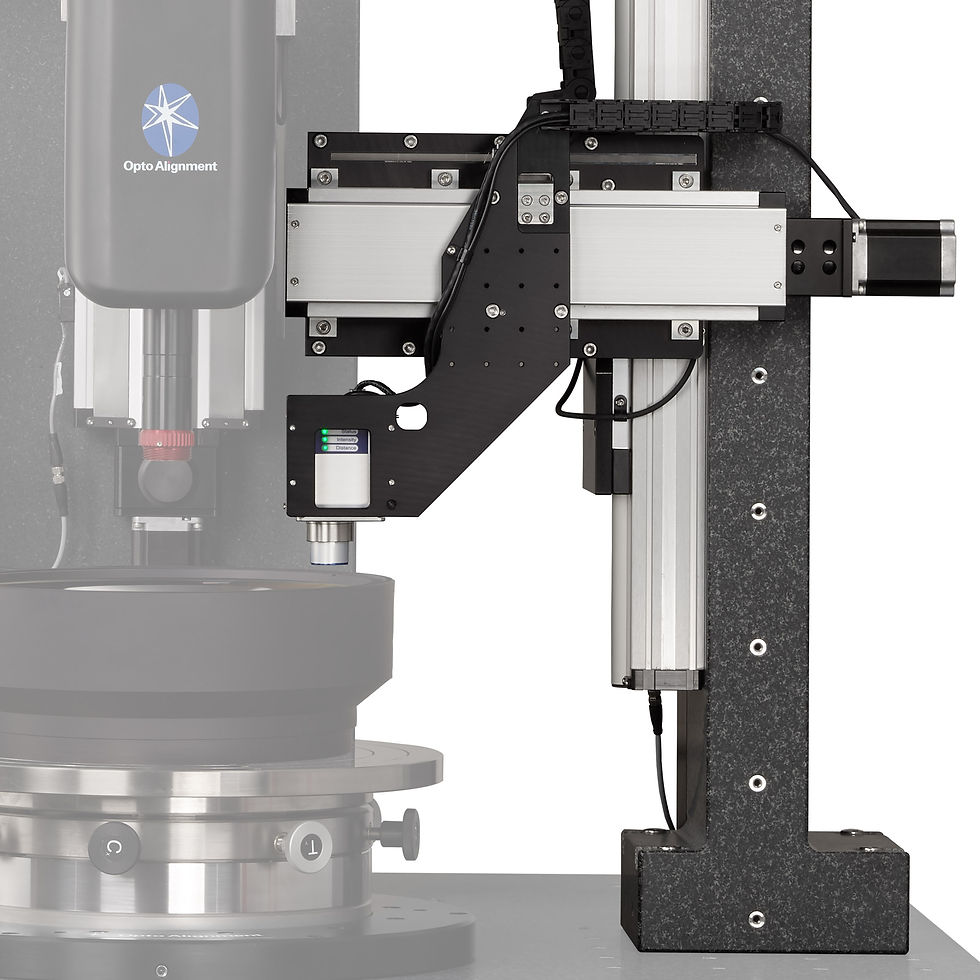

Using a cored granite column, ultra-high-precision linear encoders and a nanometer resolution distance measurement sensor, the ATM and can be mounted on a LAS for simultaneous decentration and tilt measurements of aspheric optics.



The accuracy of decentration and tilt measurement are better than 0.2 µm and 5 arcsec, respectively for most aspheric surfaces.™

  • Fast and accurate measurement of the tilt of aspheric surfaces

  • User-Programmable fully automatic measurement features (with ultra-high-precision optical linear encoders for the translation stage)



  • Flexible options: either add-on to an existing Lens Alignment Station (LAS system) for simultaneous decentration and tilt testing, or used as a stand-alone aspheric lens tilt station.
